Carlson Washington

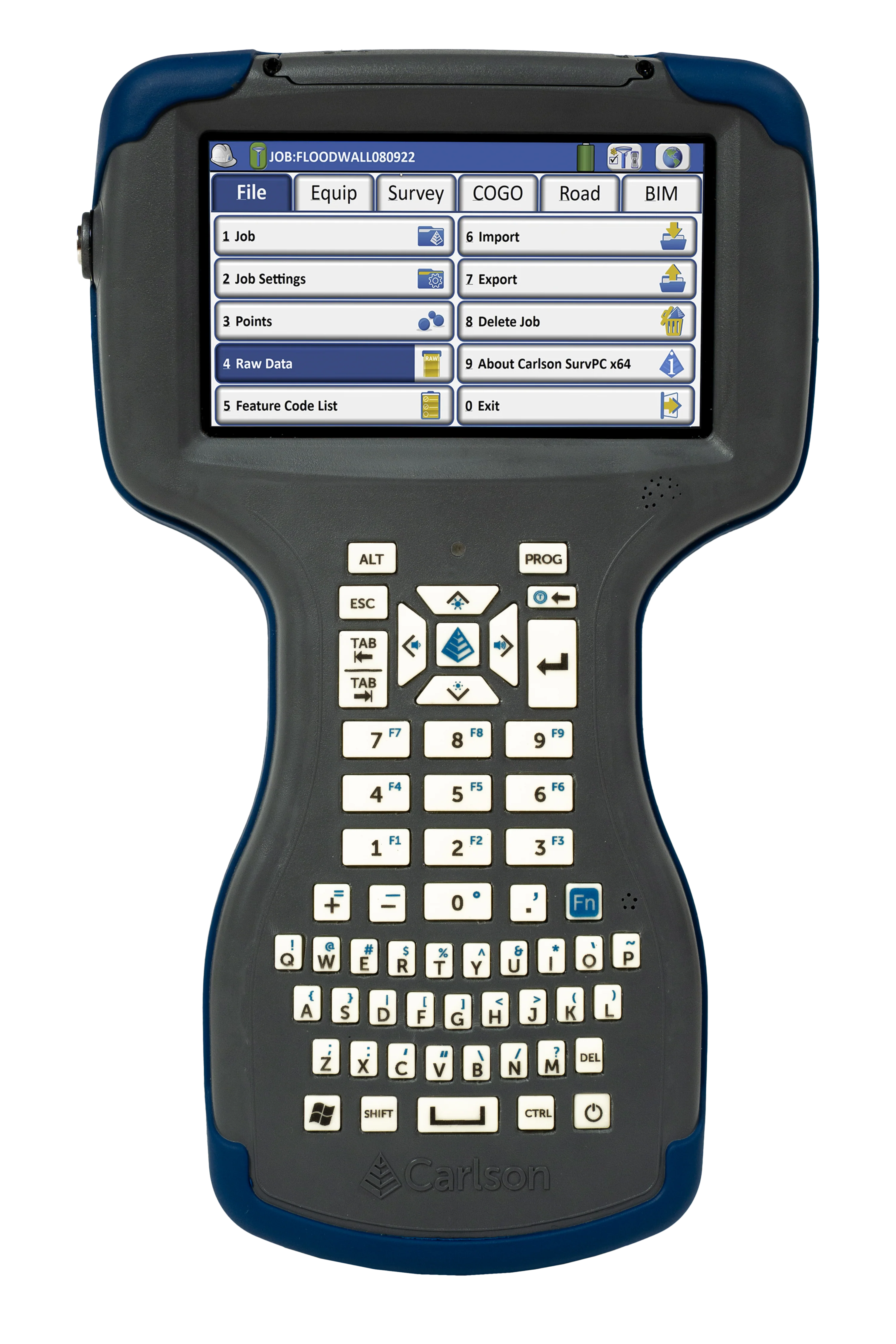

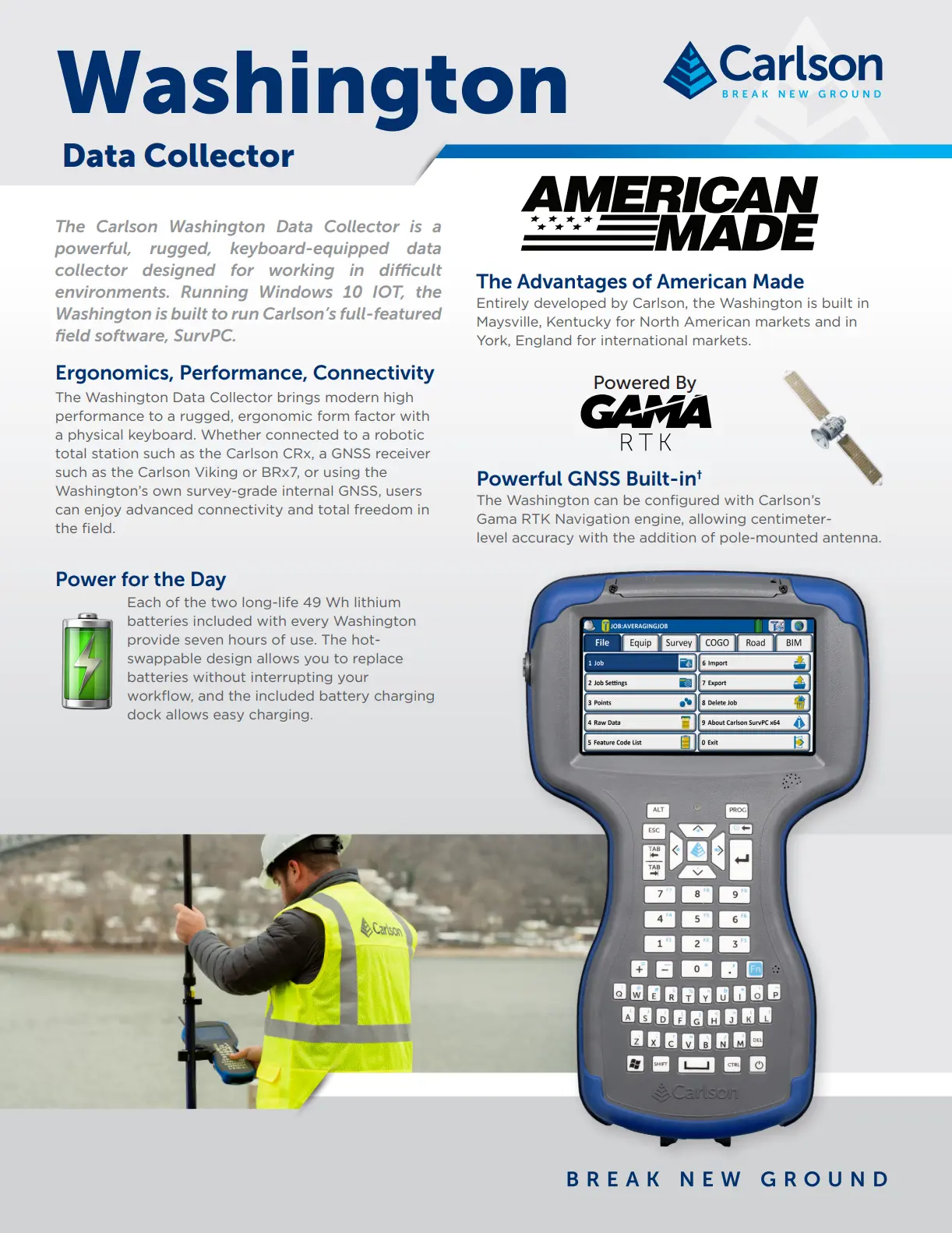

NewThe Carlson Washington is a rugged, keyboard-equipped data collector built to run Carlson SurvPC in difficult environments. It pairs an Intel® Atom™ quad-core processor, 8GB RAM, and a 5-inch chemically toughened touchscreen with optional survey-grade internal GNSS and dual hot-swappable batteries for a full day in the field.
The Carlson Washington brings modern high performance to a rugged, ergonomic form factor with a physical keyboard. Running Windows 10 IoT Enterprise, it is built for Carlson’s full-featured SurvPC field software and connects to robotic total stations such as the Carlson CRx or GNSS receivers such as the Carlson Viking and BRx7, giving users advanced connectivity and total freedom in the field.

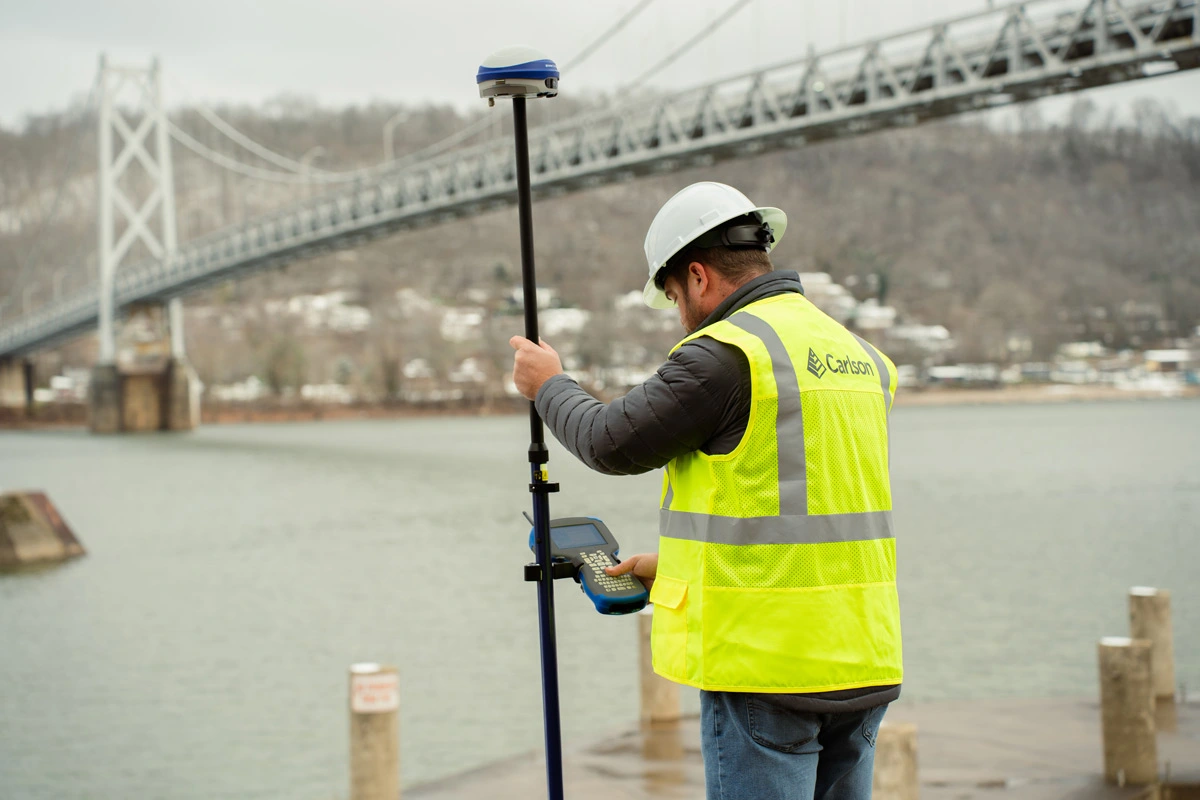

Entirely developed by Carlson, the Washington is built in Maysville, Kentucky for North American markets and in York, England for international markets. With the optional GNSS package, Carlson’s Gama RTK navigation engine delivers centimeter-level accuracy with the addition of a pole-mounted antenna, turning the Washington into a complete survey-grade positioning system on its own.
Two long-life 49 Wh hot-swappable batteries each provide seven hours of use, and an internal battery keeps the unit running while packs are changed, so a swap never interrupts your workflow. The included charging dock brings a battery back in under an hour. IP65-rated and drop-tested onto concrete, the Washington is ready for the toughest job sites.
Entirely developed by Carlson, the Washington is built in Maysville, Kentucky for North American markets and in York, England for international markets. With the optional GNSS package, Carlson’s Gama RTK navigation engine delivers centimeter-level accuracy with the addition of a pole-mounted antenna, turning the Washington into a complete survey-grade positioning system on its own.
Two long-life 49 Wh hot-swappable batteries each provide seven hours of use, and an internal battery keeps the unit running while packs are changed, so a swap never interrupts your workflow. The included charging dock brings a battery back in under an hour. IP65-rated and drop-tested onto concrete, the Washington is ready for the toughest job sites.
Ergonomic Keyboard Design
• Full numeric and QWERTY keypad with a dedicated Carlson launch key.
• Programmable function keys for your most-used SurvPC commands.
• Rugged, ergonomic form factor with shock-absorbing bumpers.
American Made
• Entirely developed by Carlson.
• Built in Maysville, Kentucky for North America and York, England for international markets.
Powerful GNSS Built-in
• Optional survey-grade internal GNSS powered by Carlson’s Gama RTK engine.
• Centimeter-level accuracy with a pole-mounted antenna.
• Multi-frequency, multi-constellation tracking with sub-10-second convergence.
Power for the Day
• Two 49 Wh hot-swappable batteries, seven hours of use each.
• Internal battery keeps the unit running during a swap.
• Included charging dock recharges a battery in under an hour.
High-Performance Computing
• Intel® Atom™ x7-E3950 quad-core processor, 8GB RAM.
• 32GB eMMC flash plus 256GB SSD storage.
• 5-inch 720 x 1920 capacitive touchscreen, scratch-resistant and chemically toughened.
Rugged & Connected
• IP65 waterproof and dustproof, shockproof to multiple 1 m drops on concrete.
• Wi-Fi 6, Bluetooth 5.1 plus long-range Bluetooth 2.0, and a worldwide 4G cellular modem.
• 13MP autofocus camera with Full HD video at 60fps.
• Full numeric and QWERTY keypad with a dedicated Carlson launch key.
• Programmable function keys for your most-used SurvPC commands.
• Rugged, ergonomic form factor with shock-absorbing bumpers.
American Made
• Entirely developed by Carlson.
• Built in Maysville, Kentucky for North America and York, England for international markets.
Powerful GNSS Built-in
• Optional survey-grade internal GNSS powered by Carlson’s Gama RTK engine.
• Centimeter-level accuracy with a pole-mounted antenna.
• Multi-frequency, multi-constellation tracking with sub-10-second convergence.
Power for the Day
• Two 49 Wh hot-swappable batteries, seven hours of use each.
• Internal battery keeps the unit running during a swap.
• Included charging dock recharges a battery in under an hour.
High-Performance Computing
• Intel® Atom™ x7-E3950 quad-core processor, 8GB RAM.
• 32GB eMMC flash plus 256GB SSD storage.
• 5-inch 720 x 1920 capacitive touchscreen, scratch-resistant and chemically toughened.
Rugged & Connected
• IP65 waterproof and dustproof, shockproof to multiple 1 m drops on concrete.
• Wi-Fi 6, Bluetooth 5.1 plus long-range Bluetooth 2.0, and a worldwide 4G cellular modem.
• 13MP autofocus camera with Full HD video at 60fps.

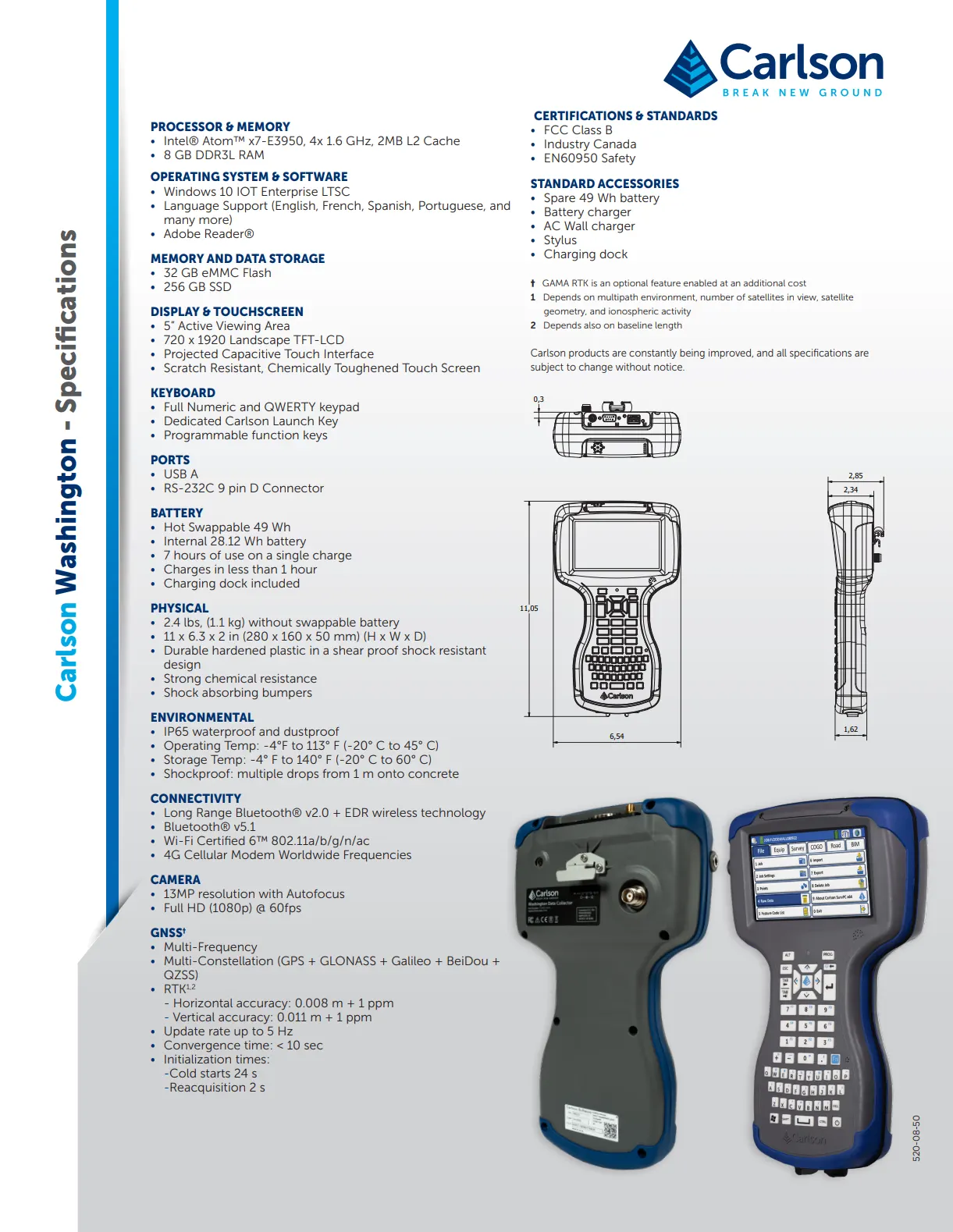

Processor: Intel® Atom™ x7-E3950, 4x 1.6 GHz, 2MB L2 cache
Operating System: Windows 10 IoT Enterprise LTSC, multilingual support, Adobe Reader®
Memory & Storage: 8GB DDR3L RAM, 32GB eMMC flash, 256GB SSD
Display: 5” active viewing area, 720 x 1920 landscape TFT-LCD, projected capacitive touch, scratch-resistant chemically toughened glass
Keyboard: Full numeric and QWERTY keypad, dedicated Carlson launch key, programmable function keys
Ports: USB-A, RS-232C 9-pin D connector
Battery: Hot-swappable 49 Wh (7 hours per charge, charges in under 1 hour), internal 28.12 Wh battery, charging dock included
Physical: 11 x 6.3 x 2 in (280 x 160 x 50 mm), 2.4 lbs (1.1 kg) without swappable battery, hardened shear-proof plastic, shock-absorbing bumpers, strong chemical resistance
Environmental: IP65, -4°F to 113°F (-20°C to 45°C) operating, -4°F to 140°F (-20°C to 60°C) storage, multiple 1 m drops onto concrete
Connectivity: Wi-Fi 6 802.11a/b/g/n/ac, Bluetooth® v5.1, long-range Bluetooth® v2.0 + EDR, 4G cellular modem with worldwide frequencies
Camera: 13MP with autofocus, Full HD 1080p video at 60fps
GNSS (optional): Multi-frequency, multi-constellation (GPS, GLONASS, Galileo, BeiDou, QZSS), RTK 8 mm + 1 ppm horizontal and 11 mm + 1 ppm vertical, up to 5 Hz update rate, convergence under 10 seconds, 24 s cold start, 2 s reacquisition
Certifications: FCC Class B, Industry Canada, EN60950 safety
Standard Accessories: Spare 49 Wh battery, battery charger, AC wall charger, stylus, charging dock
Notes: Gama RTK is an optional feature enabled at additional cost; RTK accuracy depends on multipath environment, satellites in view, satellite geometry, ionospheric activity, and baseline length
Operating System: Windows 10 IoT Enterprise LTSC, multilingual support, Adobe Reader®
Memory & Storage: 8GB DDR3L RAM, 32GB eMMC flash, 256GB SSD
Display: 5” active viewing area, 720 x 1920 landscape TFT-LCD, projected capacitive touch, scratch-resistant chemically toughened glass
Keyboard: Full numeric and QWERTY keypad, dedicated Carlson launch key, programmable function keys
Ports: USB-A, RS-232C 9-pin D connector
Battery: Hot-swappable 49 Wh (7 hours per charge, charges in under 1 hour), internal 28.12 Wh battery, charging dock included
Physical: 11 x 6.3 x 2 in (280 x 160 x 50 mm), 2.4 lbs (1.1 kg) without swappable battery, hardened shear-proof plastic, shock-absorbing bumpers, strong chemical resistance
Environmental: IP65, -4°F to 113°F (-20°C to 45°C) operating, -4°F to 140°F (-20°C to 60°C) storage, multiple 1 m drops onto concrete
Connectivity: Wi-Fi 6 802.11a/b/g/n/ac, Bluetooth® v5.1, long-range Bluetooth® v2.0 + EDR, 4G cellular modem with worldwide frequencies
Camera: 13MP with autofocus, Full HD 1080p video at 60fps
GNSS (optional): Multi-frequency, multi-constellation (GPS, GLONASS, Galileo, BeiDou, QZSS), RTK 8 mm + 1 ppm horizontal and 11 mm + 1 ppm vertical, up to 5 Hz update rate, convergence under 10 seconds, 24 s cold start, 2 s reacquisition
Certifications: FCC Class B, Industry Canada, EN60950 safety
Standard Accessories: Spare 49 Wh battery, battery charger, AC wall charger, stylus, charging dock
Notes: Gama RTK is an optional feature enabled at additional cost; RTK accuracy depends on multipath environment, satellites in view, satellite geometry, ionospheric activity, and baseline length
